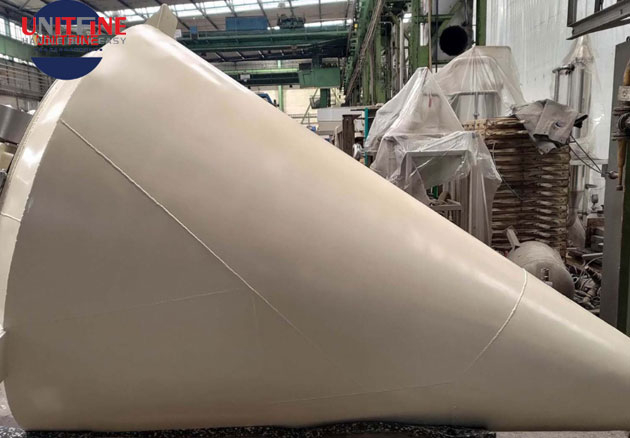

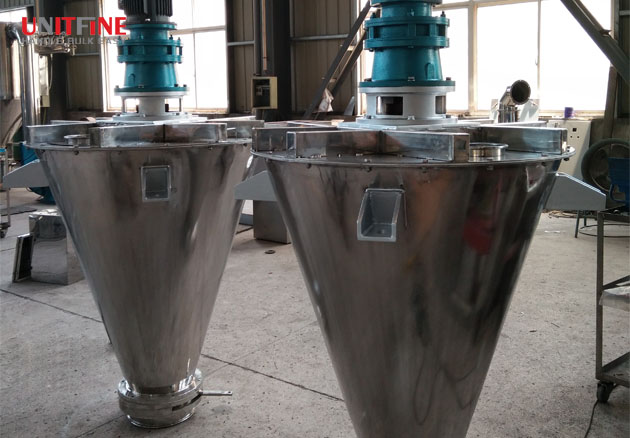

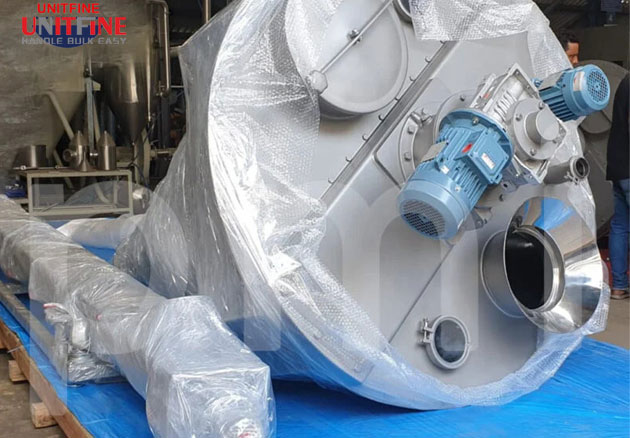

UDSH Vertical Conical Spiral Ribbon Mixer

Brief Introduction

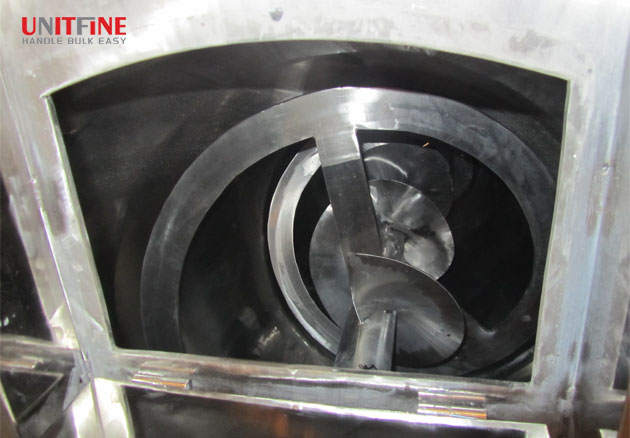

Vertical conical spiral ribbon mixer, has obvious advantages of good mixing effect, convenient discharging, etc., the spray device, heating device, lifting device, drying device, etc., are optional. The special ribbon makes the material upward continuously from the bottom during the mixture, and fog spray device can make the liquid be sprayed evenly on the mixing material. To ensure the material be fully mixed, equipped with heating device is a kind of ideal drying equipment.

Working Principle

Function:

Vertical conical spiral ribbon mixer has the strong mixing effect to make the material near the container wall move upward, and the central material move downward, soft but completely mix the flowable granular materials, a large number of materials can achieve mixing in a short time, and can achieve high standards of mixing evenly, all materials can be almost cleaned up.

Operation:

Check whether the parts are normal before starting the operation.
Feeding the material after starting the stir during mixing materials, don’t start the motor after filling up material, this will make the bearing, gear, reducer, motor and stirring shaft damage.
Check whether the feeding valve is closed before starting.
When mix the material, the total volume should not be more than 60% â€“ 70%, otherwise, it will damage equipment and affect the mixing effect.
Please read and check the above statement first, and then operate and use the equipment, Otherwise, they are not under warranty.

Features

The free flow solid materials displacement stirring cantilever shaft structure, bearing end is not in contact with the material, the gap is very small between vertical cone mixer stirring paddle and the container wall, in order to prevent the material from bonding standardized agitator drive box, to ensure the stable operation, and low maintenance cost for each application with appropriate shaft seal structure, the shaft seal leave the product installation, to ensure that the agitator seal obtain the very good use after trial and testing.

Application

Vertical conical spiral ribbon mixer provides you with solid powder, such as the mixture between fine chemicals, dyes, chemical fertilizers and shear sensitive crystal powder in batch product, mix liquid into solid, the equipment design is well suited to the overall layout of a typical chemical plant, due to the low rotational speed, is also suitable for the dangerous sites.

Model Available

Technical Parameters:

Item	Total volume m3	loading coefficient	Motor power KW	Overall size (mm) Max.diameter*height	Weight(kg)
UDSH-0.06	0.06	0.4-0.6	1.5	Ï†630*1451	120
UDSH-0.1	0.1	0.4-0.6	2.2	Ï†715*1569	220
UDSH-0.3	0.3	0.4-0.6	2.2	Ï†920*1929	320
UDSH-0.5	0.5	0.4-0.6	4	Ï†1140*2322	410
UDSH-1	1	0.4-0.6	7.5	Ï†1480*2869	900
UDSH-1.5	1.5	0.4-0.6	11	Ï†1633*3140	1200
UDSH-2	2	0.4-0.6	11	Ï†1816*3489	1300
UDSH-3	3	0.4-0.6	15	Ï†2040*3760	2400
UDSH-4	4	0.4-0.6	18.5	Ï†2250*4425	2500
UDSH-6	6	0.4-0.6	22	Ï†2548*4940	2850
UDSH-8	8	0.4-0.6	30	Ï†2780*5360	4250
UDSH-10	10	0.4-0.6	37	Ï†3018*5815	5200
UDSH-12	12	0.4-0.6	45	Ï†3204*6100	5800
UDSH-15	15	0.4-0.6	55	Ï†3442*6540	6300

Note: The mixing amount in the table are the tested data based on the medium ofÂ the powder which theÂ specific gravityÂ is 1, the selection should be calculatedÂ according to the parameter, such as, productÂ mesh, and product proportion.

If you have the conditions such as high temperature, high pressure,inflammable, explosive or corrosive, the detailed dataÂ must be provided, so as to the further selection custom.

Data in this table are subject to change without prior notice, correct parameters depends on the objects provided.

In failing to include all the products, learn more, please contact our sales engineers
